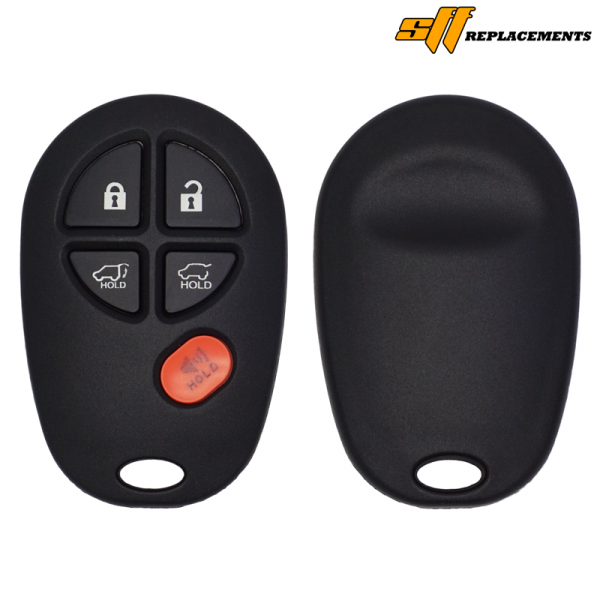

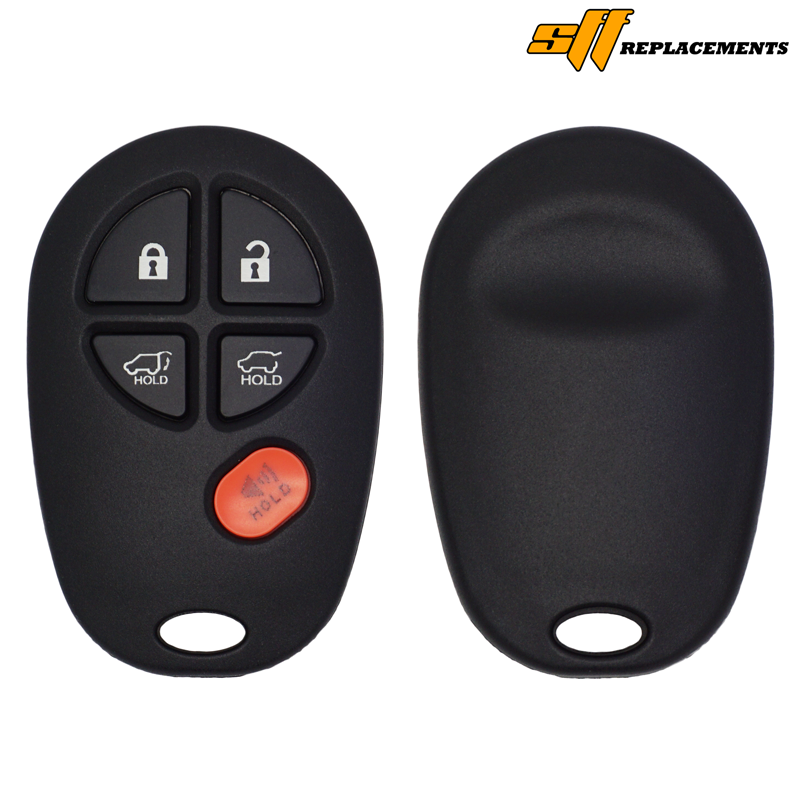

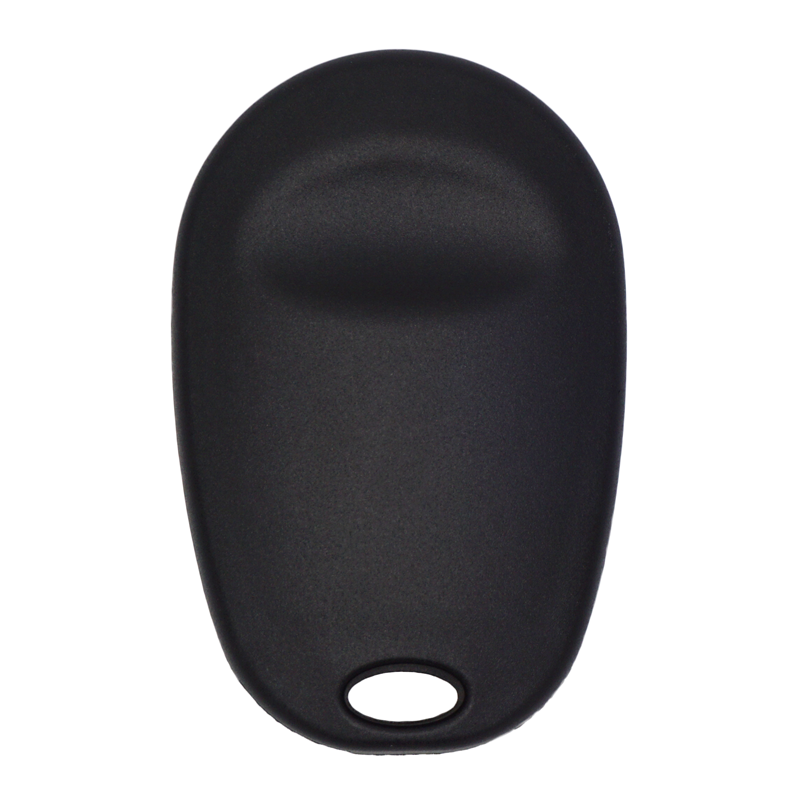

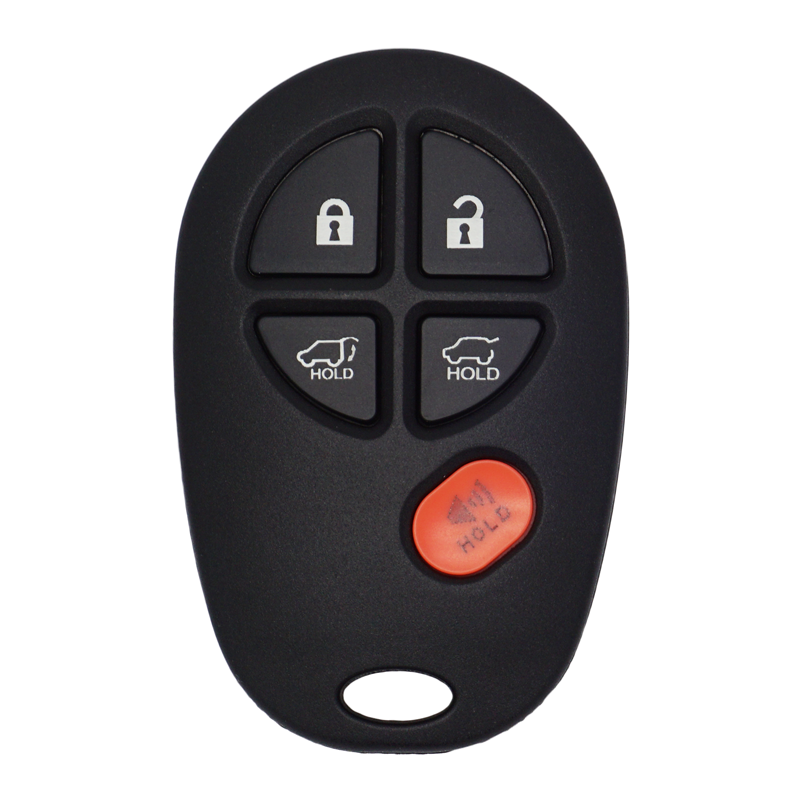

2007-2012 REPLACEMENT 5B KEYLESS REMOTE TRANSMITTER FOR TOYOTA HIGHLANDER GQ43VT20T 89742-0W021 89742-0W020

SKU: 11642A

In stock

 (25 available)

$7.80

In stock

Frequently Bought Together:

CR2032


2007-2012 REPLACEMENT 5B KEYLESS ENTRY REMOTE TRANSMITTER FOR TOYOTA HIGHLANDER GQ43VT20T 89742-0W021 89742-0W020

manufacturer Toyota
make Toyota
fcc id GQ43VT20T
ic id 1470A-1T
oem part number 89742-0W021
89742-0W020
frequency 315Mhz
number of buttons 5
reusable Yes
battery size CR2032
compatibility 2007-2012 Toyota Highlander

2007-2012 REPLACEMENT 5B KEYLESS ENTRY REMOTE TRANSMITTER FOR TOYOTA HIGHLANDER GQ43VT20T 89742-0W021 89742-0W020

1. Start with the key out of the ignition, drivers door is open all others closed and drivers door is unlocked. 2. Perform these steps within 5 seconds. A. Insert the key into the ignition(Do NOT Turn) Pull key out. B. Insert the key into the ignition(Do NOT Turn) Pull key out. 3. Perform these steps within 40 seconds. A. Close then open the drivers door. B. Close then open the drivers door. C. Insert the key into the ignition(Do NOT Turn) Pull key out. 4. Perform these steps within 40 seconds. A. Close then open the drivers door. B. Close then open the drivers door. C. Insert the key into ignition and leave it in ignition. D. Close the drivers door. E. Turn the ignition to ON (Do NOT Start) then back to OFF. F. Remove the key from the ignition. 5. Within 3 seconds, the power door locks should lock then unlock automatically indicating successful entry into programming mode. Return to step 1 if the locks do not cycle at this point. 6. Perform these steps within 40 seconds. A. Press the lock and unlock buttons on the remote simultaneously for 1.5 seconds. B. Immediately after letting go of the lock and unlock buttons, Press the lock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should lock and then unlock once indicating successful programming. If the door locks cycle twice, repeat steps A and B in step 6 as the remote was not accepted. C. Repeat steps A and B in step 6 for each new remote. 7. Open drivers door.

Weight 0.125 lbs
Dimensions 2.75 × 1 × 0.5 in
Condition

Like New, OEM Refurbished, OEM Reshell

All Transmitters Carry a 30 Day Standard Warranty Against Electronic Defect.
