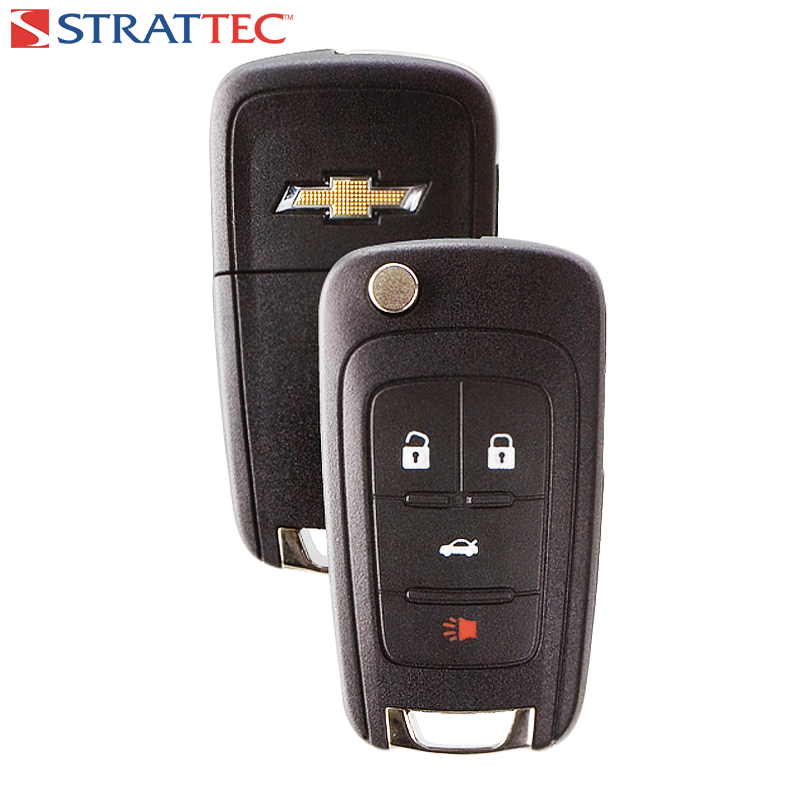

2010-2019 STRATTEC CHEVROLET CRUZE CAMARO IMPALA MALIBU EQUINOX SONIC 4B FLIP KEY REMOTE 5912543
| manufacturer | General Motors |
| make | Chevrolet |
| fcc id | OHT01060512 |
| ic id | 5461A-01060512 |
| oem part number | 13501913 13574862 13500222 13504200 13500227 23465183 23335583 |
| strattec number | 5912543 |
| frequency | 315Mhz |
| number of buttons | 4 |
| reusable | Yes, After Unlocking |
| battery size | CR2032 |
| compatibility | 2010-2016 Chevrolet Camaro 2011-2015 Chevrolet Cruze 2010-2019 Chevrolet Equinox 2014-2019 Chevrolet Impala 2012-2017 Chevrolet Sonic 2014-2016 Chevrolet Malibu |
| keyway | HIGH SECURITY |
| chip id | PHILIPS 46 GM EXT |
| code series | Z1000-Z6000 |
| keyway ilco | HU100 |
| keyway jma | OP-11 |
2010-2019 STRATTEC CHEVROLET CRUZE CAMARO IMPALA MALIBU EQUINOX SONIC 4B FLIP KEY REMOTE 5912543
On Board Programming Instructions with One Working Key 1. Get in the vehicle and close all the doors. 2. Using a working original key, insert the key into the ignition and switch to the ON position as far as it will go without starting the vehicle, WAIT 5 SEC/ OR THE PADLOCK LIGHT ON THE DASH GOES OUT. then switch OFF. 3. Remove the key from the ignition. 4. Insert the new key into the ignition and switch to the ON position as far as it will go without starting the vehicle. WAIT 5 SEC / / OR THE PADLOCK LIGHT ON THE DASH GOES OUT. 5. The key is now programmed. 6. Test the key to ensure that it starts the vehicle. If the key did not program, restart the programming procedure from STEP 1. To program additional keys, repeat the entire procedure.
| Weight | .125 lbs |
|---|---|
| Dimensions | 4 × 8 × 1 in |
| Condition | Like New, OEM Refurbished, OEM Reshell, Aftermarket |
All Transmitters Carry a 30 Day Warranty.
