KEYLINE MESSENGER PORTABLE KEY CUTTING MACHINE FOR EDGE, LASER, & DIMPLE KEYS ( BATTERY CAPABLE)

KEYLINE MESSENGER PORTABLE KEY CUTTING MACHINE FOR EDGE, LASER, & DIMPLE KEYS ( BATTERY CAPABLE) - Image 2

KEYLINE MESSENGER PORTABLE KEY CUTTING MACHINE FOR EDGE, LASER, & DIMPLE KEYS ( BATTERY CAPABLE) - Image 3

KEYLINE MESSENGER PORTABLE KEY CUTTING MACHINE FOR EDGE, LASER, & DIMPLE KEYS ( BATTERY CAPABLE) - Image 4

manufacturer	KEYLINE-USA
make	MESSENGER

Description

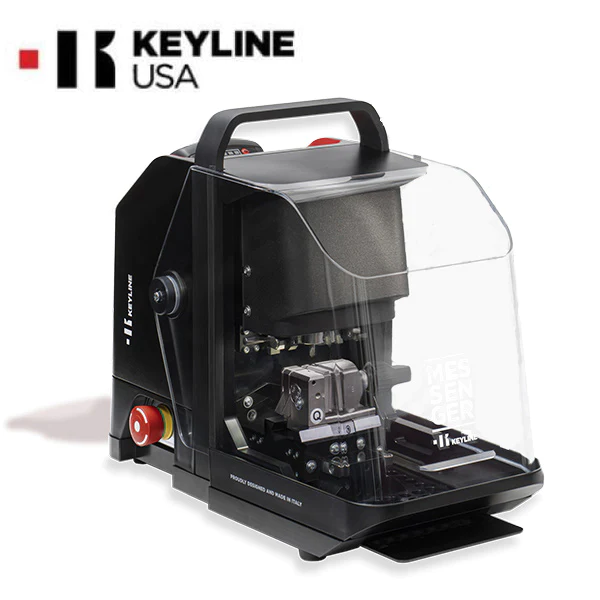

KEYLINE MESSENGER

Messenger: for edge, laser and dimple keys

• Messenger is Keyline’s portable key cutting machine for laser, edge and dimple keys. It’s a compact and light machine, in fact it weighs only 10 Kg.

• The Messenger is controlled by an App, which can cut by code, decode and copy keys. Thanks to its characteristics, and because it’s also battery powered, it can be used in a wide variety of work situations. With Messenger you can provide commercial, residential, or automotive key cutting service anywhere, at any time, and with the utmost flexibility!

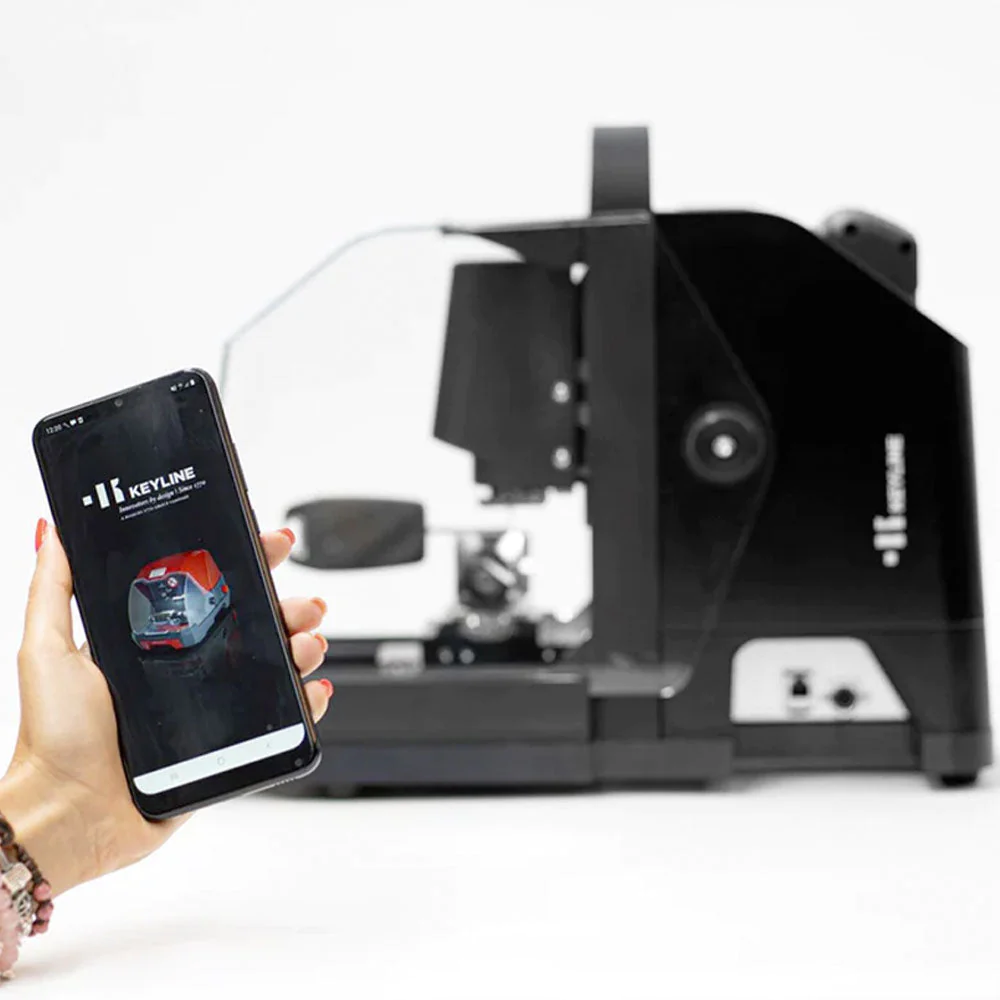

• It’s very simple to use. In fact, the user can control all the machine functions through the KDT APP, using an Android smartphone or tablet. The app has many new features, a new interface and the Keyline’s extensive database of car and door keys.

• The machine has been designed for everyone out there who needs to duplicate keys on-the go. Both the hardware components and the software that runs the machine are developed by the R&D Team of Keyline.

Clamps:

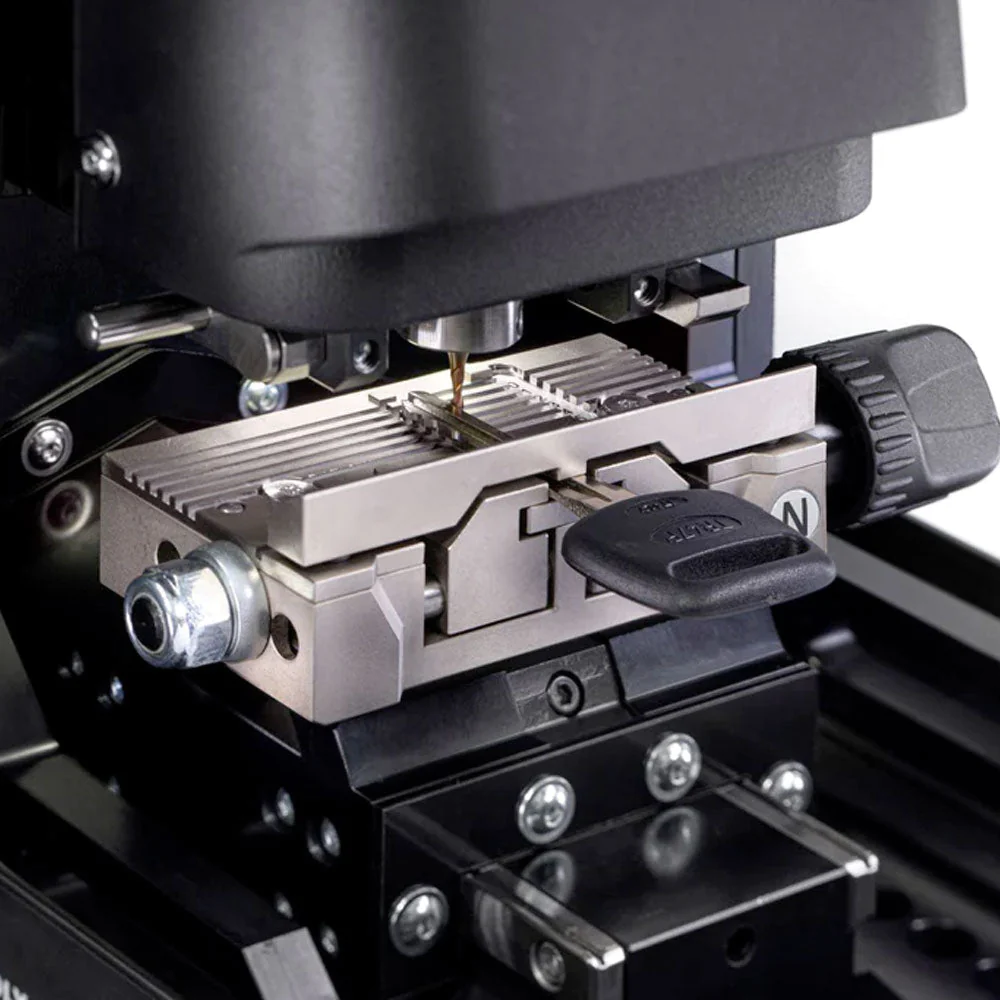

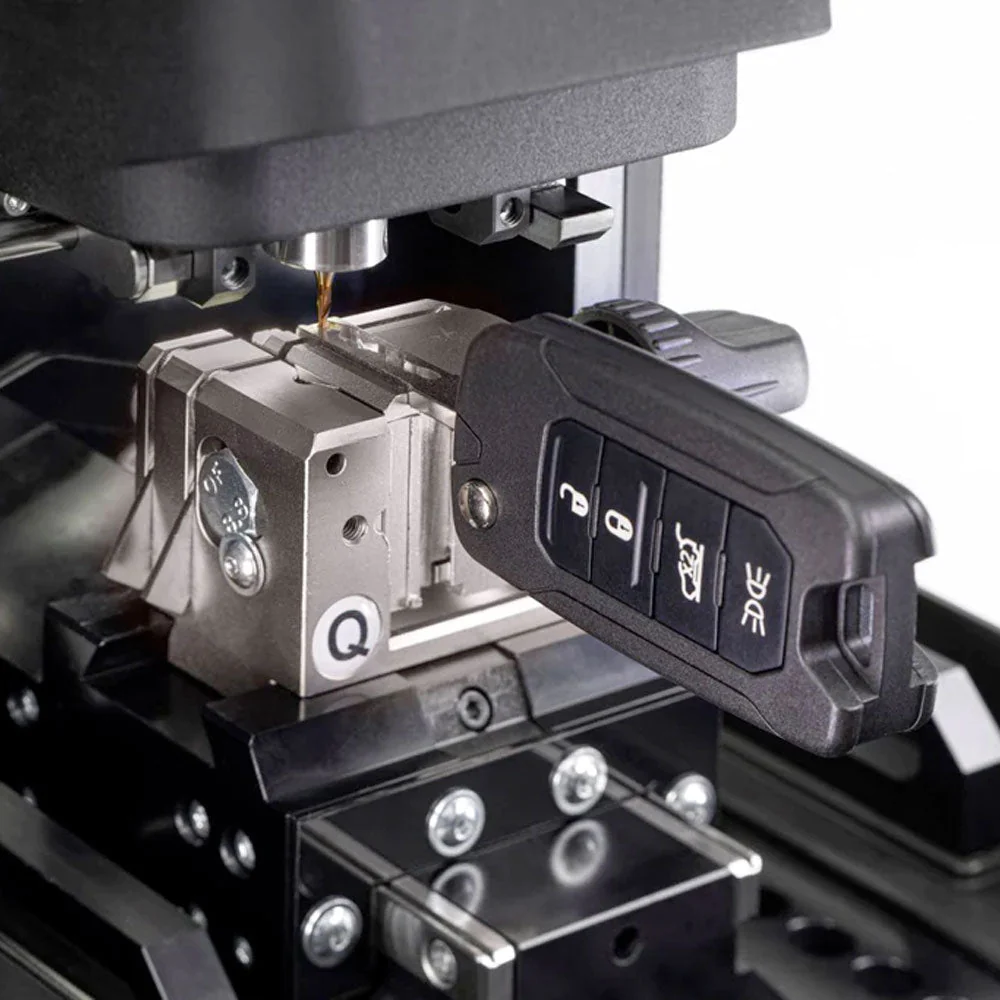

Messenger includes 2 new clamps: The Q clamp: for laser and dimple keys; an innovation in the cutting of keys: with one unique clamp you can cut the main range of laser keys. The N clamp: for edge cut automotive keys (with symmetrical cuts on both sides without the need to turn the key).

Highlights

For edge-cut, laser, and dimple keys
Cuts by code, decodes, and copies
Weighs only 22 pounds
Carrying handle that allows for easy transport
Controlled exclusively through the Keyline KDT App on any Android tablet or smartphone
Powered by traditional electric or rechargeable battery
2 New clamps, Q and N, are included with the machine. It is also compatible with the H, J, or M clamps, which are sold separately

TECHNICAL FEATURES
POWER SUPPLY:	110-230 VAC 50/60 Hz 1 A or with optional external battery 36V – 72Wh
BUILT-IN BATTERY:	Standard integrated adapter for Battery use
KEY READING / DECODING SYSTEM:	Electric contact
LIGHTING:	LED – lighted cutting bay
MOVEMENTS / AXES:	3 axes, guided by stepper motors with T-shaped screw and anti-backlash nut
CLAMPS:	Q clamp for laser and dimple keys / N clamp for edge cut automotive keys
MOTOR:	Brushless
CUTTER:	V037 Widia ø 2.0 mm for laser and edge cut automotive key; V001 Widia 90° for dimple keys
CUTTER SPEED:	10000 rpm (7500 rpm with the battery power supply); variable speed for specific materials
ABSORPTION:	120W (6W in stand-by)
DIMENSIONS:	Width: 200 mm (7.8”) / Depth: 395 mm (15.5”) / Height: 310 mm (12.2”)
WEIGHT:	Machine body 10 Kg (22 lbs)
OPERATION CONTROL:	Operates using KDT app
CONNECTIONS:	Bluetooth
DEDICATED APP:	Keyline APP KDT for Android device from version 7 and up with Data connection

Weight	28 lbs
Dimensions	20 × 20 × 19 in

KEYLINE MESSENGER PORTABLE KEY CUTTING MACHINE FOR EDGE, LASER, & DIMPLE KEYS ( BATTERY CAPABLE)

SKU: KL-BI1001

Original price was: $4,900.00.Current price is: $4,400.00.
