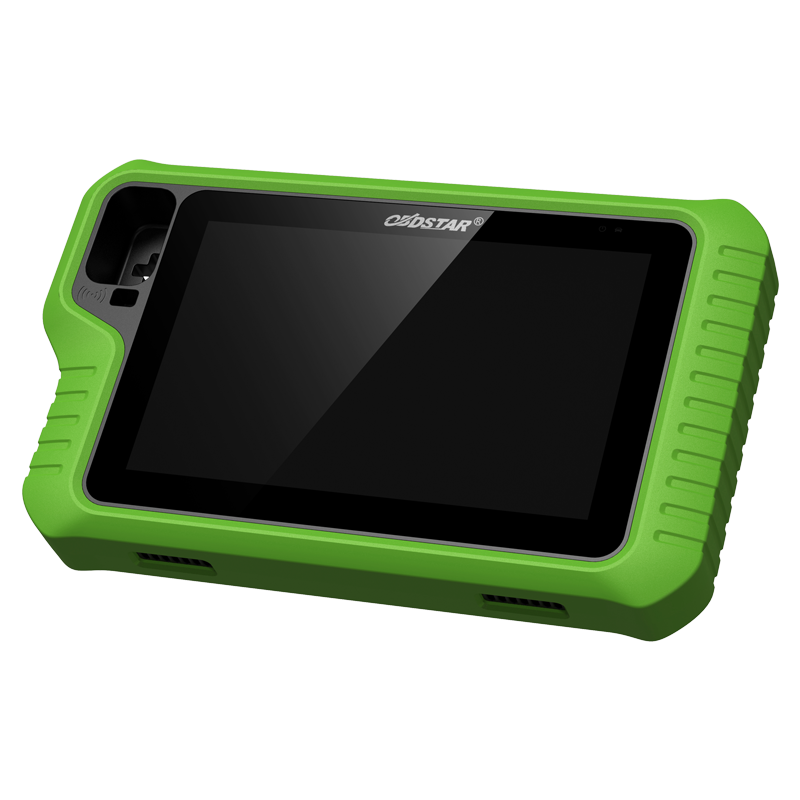

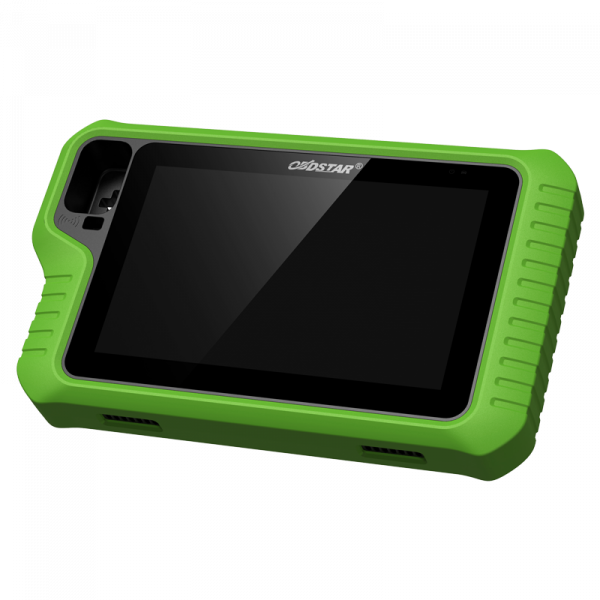

OBDSTAR KEYMASTER G3 Immobilizer Auto Key Programming Device – 2 Year Subscription INCLUDED

SKU: 40560

In stock

 (1 available)

$1,395.00 $1,554.44

In stock


  • Supported Vehicle Types:
    • Car
    • HD
    • E-Car
    • MOTO
    • Marine (jet-ski)



  • Software Functions:

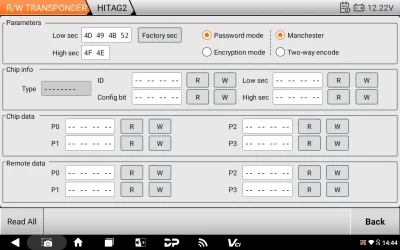

    • Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II, etc.



  • Hardware Advantages:
    1. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test, and RFID.
    2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High-Performance VCI Processor.



  • Advanced Functions (Note some advanced functions may require software or adapter purchases for functionality) :
    1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET, and others.
    2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA, and others.
    3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO, and others.
    4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP, and others.
    5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled.
    6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3.
    7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN, and Samsung QM6\SM6 models.
    8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform, and other functions are available.



Feature KEY MASTER G3 KEY MASTER DP PLUS
Operation system Android 11 Android 5.1.1
OTA ✓ ×
Screen recording ✓ ×
Wireless screen casting ✓ ×
CPU Dual-core Cortex-A72 + Quad-core Cortex-A53 Exynos4418 qual core ARM cortex A9
Storage capacity 4+64GB 1+32GB
LCD 8.0 inch fully laminated sunlight readable screen 8.0 inch
LCD resolution 1280*800 1280*800
Camera Rear camera 800W pixels, auto-focus Rear camera 500W pixels
Bluetooth Bluetooth 5.0 ×

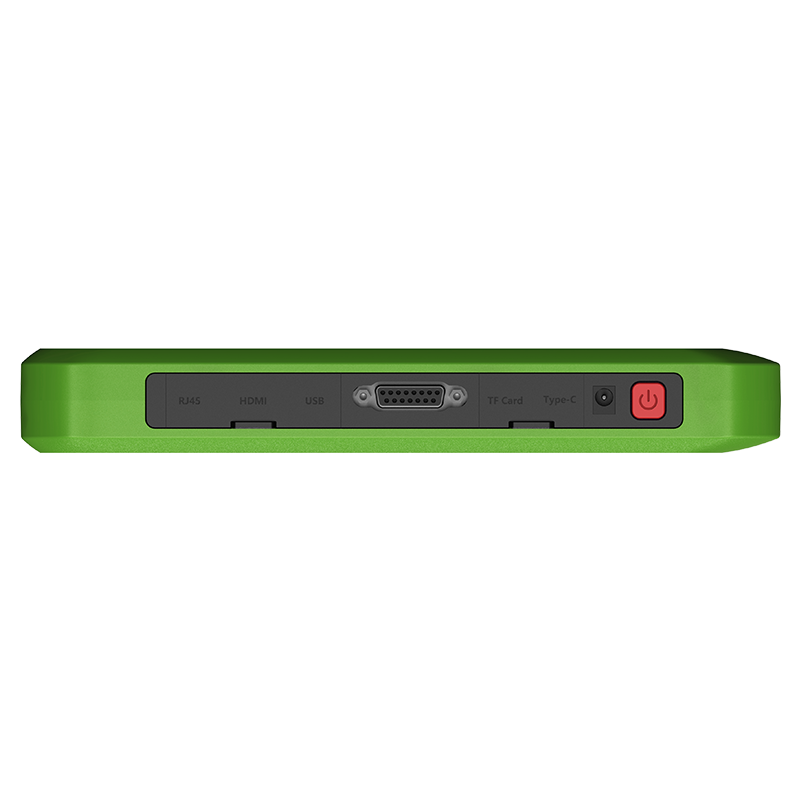

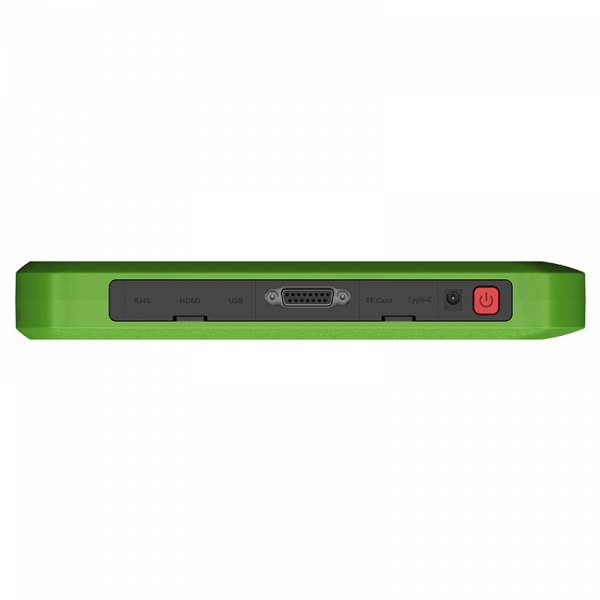

External interfaces RJ-45 ×
External interfaces HDMI✓ ×
External interfaces TYPE-A,TYPE-C TYPE-A,TYPE-C
WiFi Dual-band 2.4G/5GHZ 2.4G
VCI STM32H723 STM32F407
VCI CANFD built in✓ CANFD Adapter Required
VCI DOIP built in✓ ×
VCI Fault Tolerant CAN built in✓ ×
VCI All other common protocol types All other common protocol types
RFID Built in✓ P001 Required
Remote Test Built in✓ RT100 Required
Renault Converter Built in✓ Renault Converter Required

Downloads:

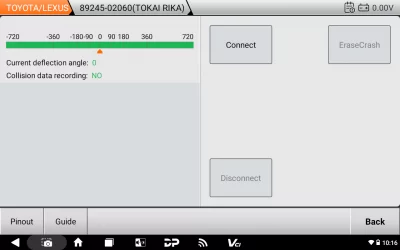

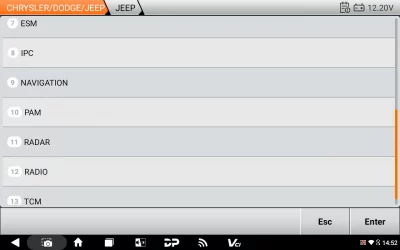

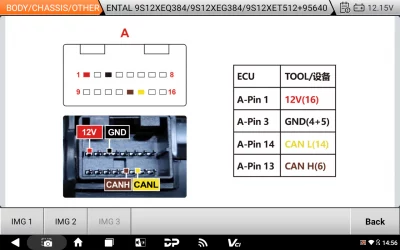

Function Display Screens

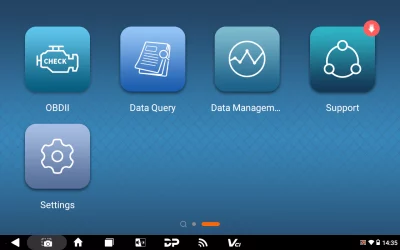

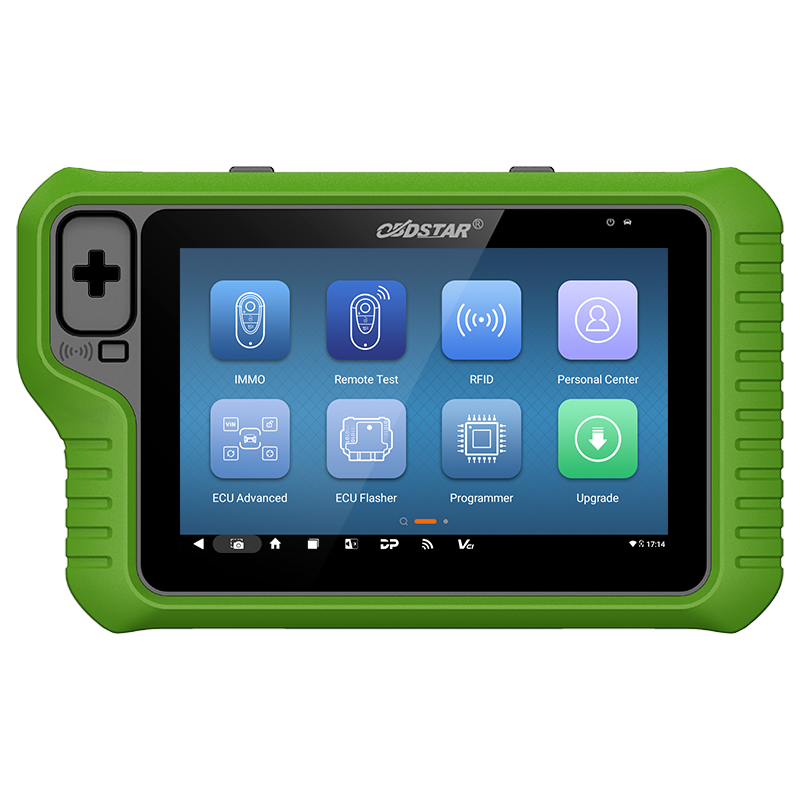

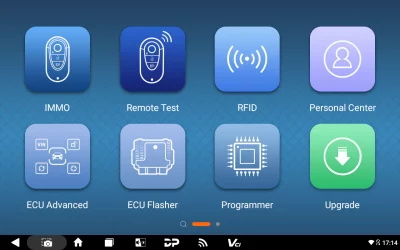

Main Page

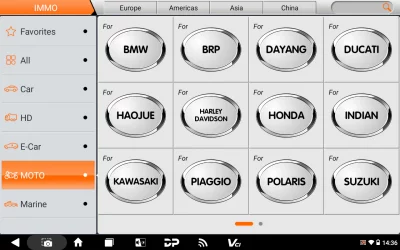

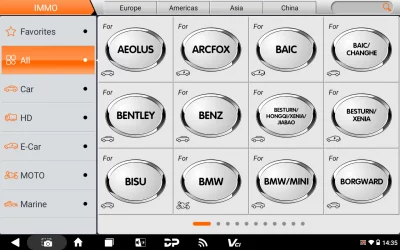

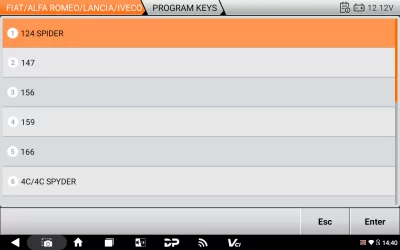

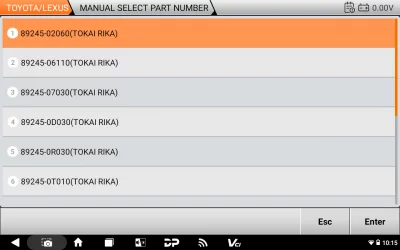

IMMO

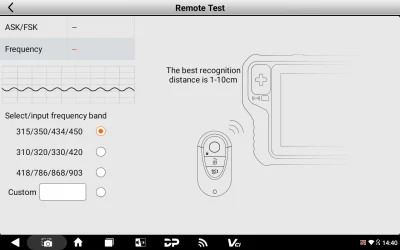

Remote Test

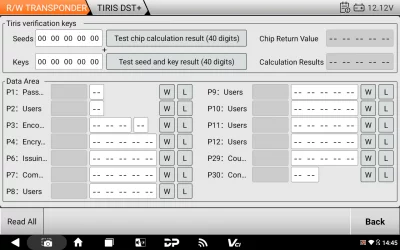

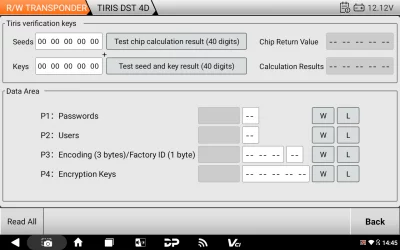

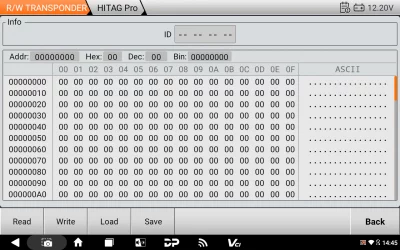

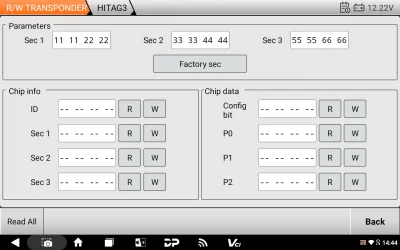

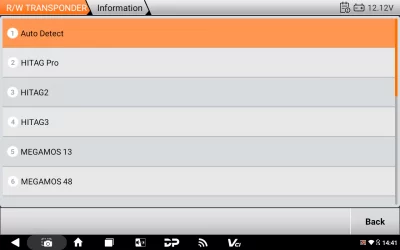

RFID

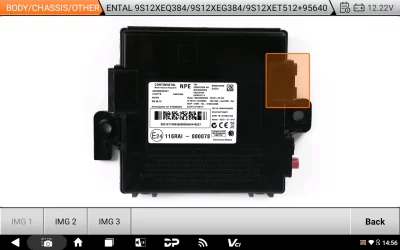

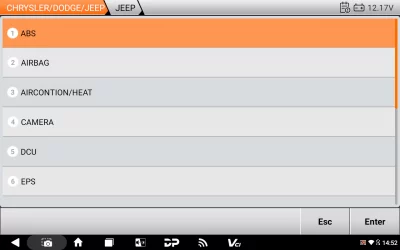

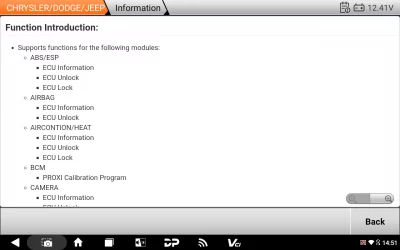

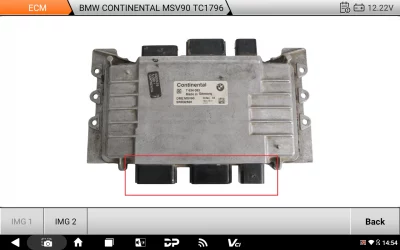

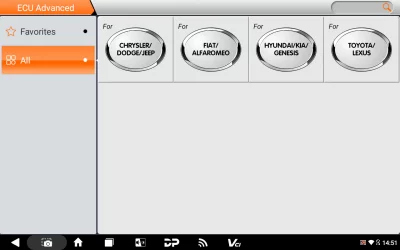

ECU Advanced

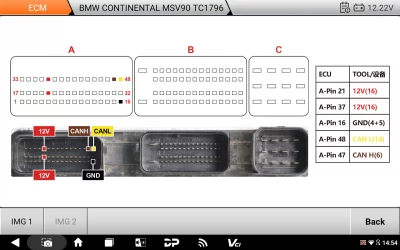

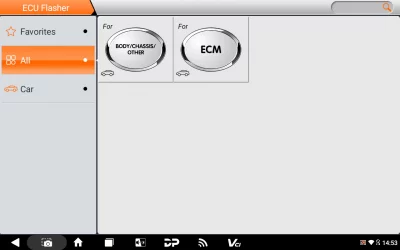

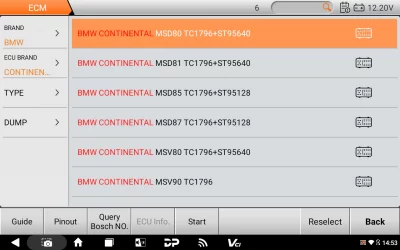

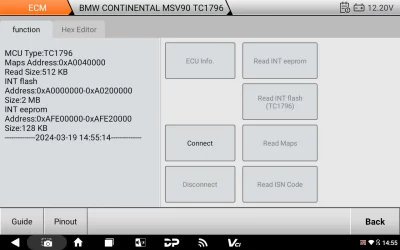

ECU Flasher
manufacturer OBDSTAR
make KEYMASTER G3
  • Supported Vehicle Types:
    • Car
    • HD
    • E-Car
    • MOTO
    • Marine (jet-ski)



  • Software Functions:
    • Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II, etc.



  • Hardware Advantages:
    1. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test, and RFID.
    2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High-Performance VCI Processor.



  • Advanced Functions (Note some advanced functions may require software or adapter purchases for functionality) :
    1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET, and others.
    2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA, and others.
    3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO, and others.
    4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP, and others.
    5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled.
    6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3.
    7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN, and Samsung QM6\SM6 models.
    8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform, and other functions are available.



Feature KEY MASTER G3 KEY MASTER DP PLUS
Operation system Android 11 Android 5.1.1
OTA ✓ ×
Screen recording ✓ ×
Wireless screen casting ✓ ×
CPU Dual-core Cortex-A72 + Quad-core Cortex-A53 Exynos4418 qual core ARM cortex A9
Storage capacity 4+64GB 1+32GB
LCD 8.0 inch fully laminated sunlight readable screen 8.0 inch
LCD resolution 1280*800 1280*800
Camera Rear camera 800W pixels, auto-focus Rear camera 500W pixels
Bluetooth Bluetooth 5.0 ×
External interfaces RJ-45 ×
External interfaces HDMI✓ ×
External interfaces TYPE-A,TYPE-C TYPE-A,TYPE-C
WiFi Dual-band 2.4G/5GHZ 2.4G
VCI STM32H723 STM32F407
VCI CANFD built in✓ CANFD Adapter Required
VCI DOIP built in✓ ×
VCI Fault Tolerant CAN built in✓ ×
VCI All other common protocol types All other common protocol types
RFID Built in✓ P001 Required
Remote Test Built in✓ RT100 Required
Renault Converter Built in✓ Renault Converter Required

Downloads:



Function Display Screens
Main Page
IMMO
Remote Test
RFID
ECU Advanced
ECU Flasher

Weight 8 lbs
Dimensions 12 × 10 × 4 in
