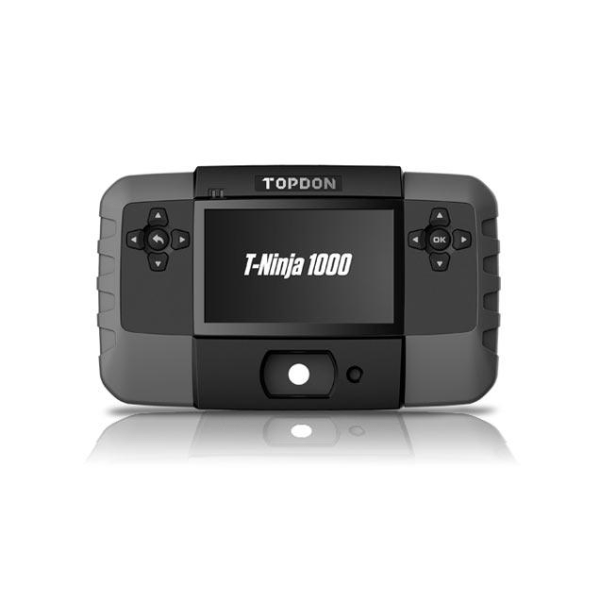

TOPDON T-NINJA 1000 OBD AUTOMOTIVE SMART DIAGNOSTIC PROGRAMMER

SKU: 40396
(1 customer review)

Out of stock

 (0 available)

$499.00

Out of stock

Email when stock available


TOOL DESCRIPTION
As the newest addition to the TOPDON family of highly advanced smart diagnostic tools, TOPDON T-Ninja 1000 serves as the OBD key programming tool for the automotive immobilizer system. An array of powerful features including Key Generation, PIN Reading, Key Learning, Remote Learning, Key Deletion, All Key Lost, and more, are all covered. With its real-time guided operation, immense online database, robust hardware, and intuitive software, you now have an effective and easy-to-use key programming machine for automotive locksmiths and technicians alike.

FEATURES

  • It does not require internet or server connection to program keys.
  • 12 month Free updates and 12 month warranty
  • Support most vehicles in North America, and some Japanese brands and growing.
  • Practical money-making functions: Read Pin Code, All Keys Lost, Add and Erase Keys and more.
  • Step-by-step guidance through a series of functions.
  • Read Pin Code for most vehicles.
  • Online Technical Assistance Center with a constantly updated database.
  • Cost-effective; low price to meet the economic crisis and pay for itself in just one use.
  • Regular updates for supported vehicles and future vehicles.
  • All by OBD, no soldering, no EEPROM



TECHNICAL SPECIFICATIONS
  • Operating System: Rt-thread
  • CPU: ARM Cortex-M4, 180MHz
  • Display: 5.0” TFT LCD, 800*480 Resolution
  • Memory: 256M RAM, 128M ROM, 16G Micro SD
  • Material: ABS Plastic Shell, Silicone Button
  • Starting time: ≤3S
  • Connectivity: USB1.1
  • OBD Interface: OBD-II 16PIN
  • Buzzer: 85db / min at10cm
  • Current: 500mA (typical)
  • Input Voltage: DV 12V
  • Power Consumption: 1.8W (typical)
  • Battery: 350mAh Button Battery (not rechargeable)
  • Working Humidity: ≤95% RH
  • Working Voltage: 12V ± 25%
  • Working Temperature: -10℃~45℃ (14℉~113℉)
  • Storage Temperature: -20℃~50℃ (-4℉~122℉)
  • Dimensions: 231.5*141.5*35mm (9.11*5.57*1.38 inches)
  • Weight: 480g (16.93oz)

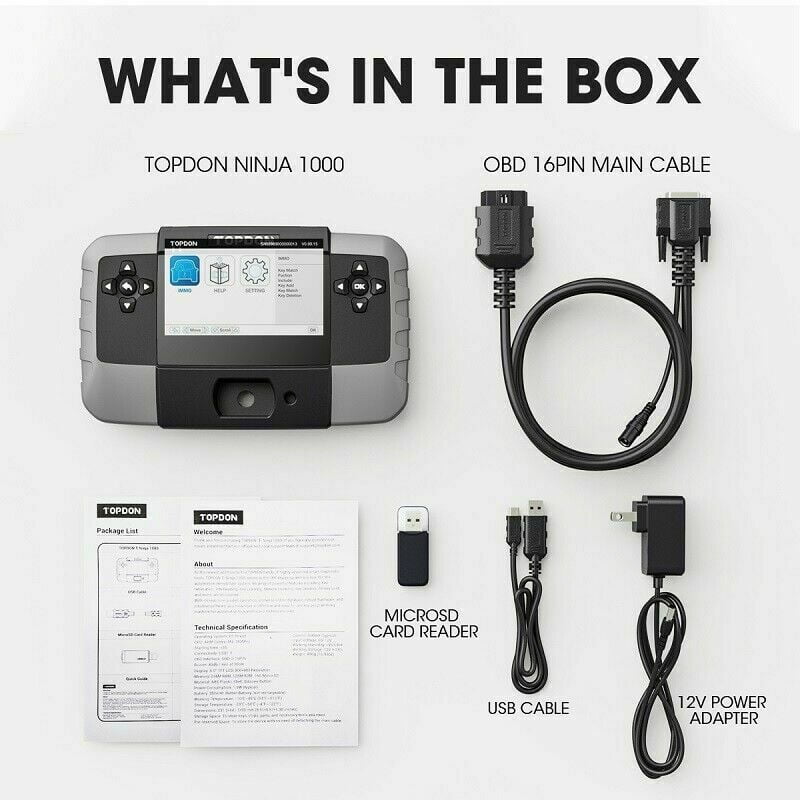

PACKAGE LIST

1*TOPDON Ninja 1000

1*OBD 16PIN Main Cable

1*USB Cable

1*Micro SD Card Reader

1*12V Power Adapter

1*Quick Guide

1*Carry Case

1*Package List

Asia:

Compatible with Toyota, Lexus, Scion, Honda, Acura, Nissan, Infiniti, Hyundai, Kia, Mazda, Mitsubishi, Suzuki, Subaru, Isuzu, Ssangyong

 America:

Compatible with Chrysler, Dodge, Jeep, Ford, Lincoln, Mercury, Chevrolet, Buick, GM, Cadillac, Hummer, GMC

Europe:

Compatible with EU Ford, Fiat, Opel, Jaguar, Land Rover, SAAB, Maserati

Others:

Compatible with Au Ford, Holden, Mahindra, TATA, Maruti, Suzuki

manufacturer TOPDON
make T-NINJA 1000
TOOL DESCRIPTION
As the newest addition to the TOPDON family of highly advanced smart diagnostic tools, TOPDON T-Ninja 1000 serves as the OBD key programming tool for the automotive immobilizer system. An array of powerful features including Key Generation, PIN Reading, Key Learning, Remote Learning, Key Deletion, All Key Lost, and more, are all covered. With its real-time guided operation, immense online database, robust hardware, and intuitive software, you now have an effective and easy-to-use key programming machine for automotive locksmiths and technicians alike.

FEATURES

  • It does not require internet or server connection to program keys.
  • 12 month Free updates and 12 month warranty
  • Support most vehicles in North America, and some Japanese brands and growing.
  • Practical money-making functions: Read Pin Code, All Keys Lost, Add and Erase Keys and more.
  • Step-by-step guidance through a series of functions.
  • Read Pin Code for most vehicles.
  • Online Technical Assistance Center with a constantly updated database.
  • Cost-effective; low price to meet the economic crisis and pay for itself in just one use.
  • Regular updates for supported vehicles and future vehicles.
  • All by OBD, no soldering, no EEPROM



TECHNICAL SPECIFICATIONS
  • Operating System: Rt-thread
  • CPU: ARM Cortex-M4, 180MHz
  • Display: 5.0” TFT LCD, 800*480 Resolution
  • Memory: 256M RAM, 128M ROM, 16G Micro SD
  • Material: ABS Plastic Shell, Silicone Button
  • Starting time: ≤3S
  • Connectivity: USB1.1
  • OBD Interface: OBD-II 16PIN
  • Buzzer: 85db / min at10cm
  • Current: 500mA (typical)
  • Input Voltage: DV 12V
  • Power Consumption: 1.8W (typical)
  • Battery: 350mAh Button Battery (not rechargeable)
  • Working Humidity: ≤95% RH
  • Working Voltage: 12V ± 25%
  • Working Temperature: -10℃~45℃ (14℉~113℉)
  • Storage Temperature: -20℃~50℃ (-4℉~122℉)
  • Dimensions: 231.5*141.5*35mm (9.11*5.57*1.38 inches)
  • Weight: 480g (16.93oz)
PACKAGE LIST

1*TOPDON Ninja 1000

1*OBD 16PIN Main Cable

1*USB Cable

1*Micro SD Card Reader

1*12V Power Adapter

1*Quick Guide

1*Carry Case

1*Package List

Asia:

Compatible with Toyota, Lexus, Scion, Honda, Acura, Nissan, Infiniti, Hyundai, Kia, Mazda, Mitsubishi, Suzuki, Subaru, Isuzu, Ssangyong

 America:

Compatible with Chrysler, Dodge, Jeep, Ford, Lincoln, Mercury, Chevrolet, Buick, GM, Cadillac, Hummer, GMC

Europe:

Compatible with EU Ford, Fiat, Opel, Jaguar, Land Rover, SAAB, Maserati

Others:

Compatible with Au Ford, Holden, Mahindra, TATA, Maruti, Suzuki
